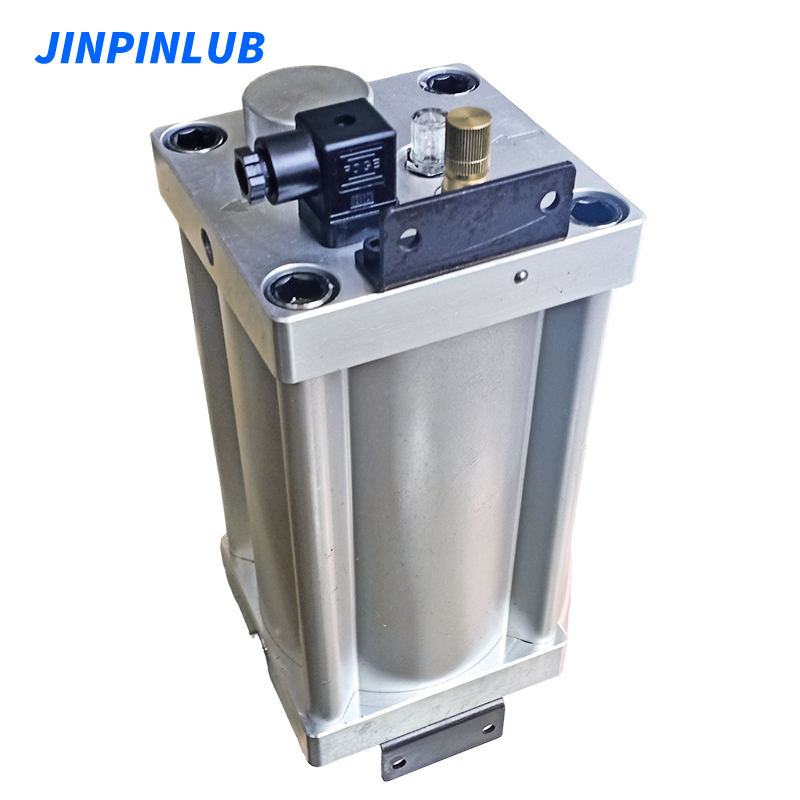

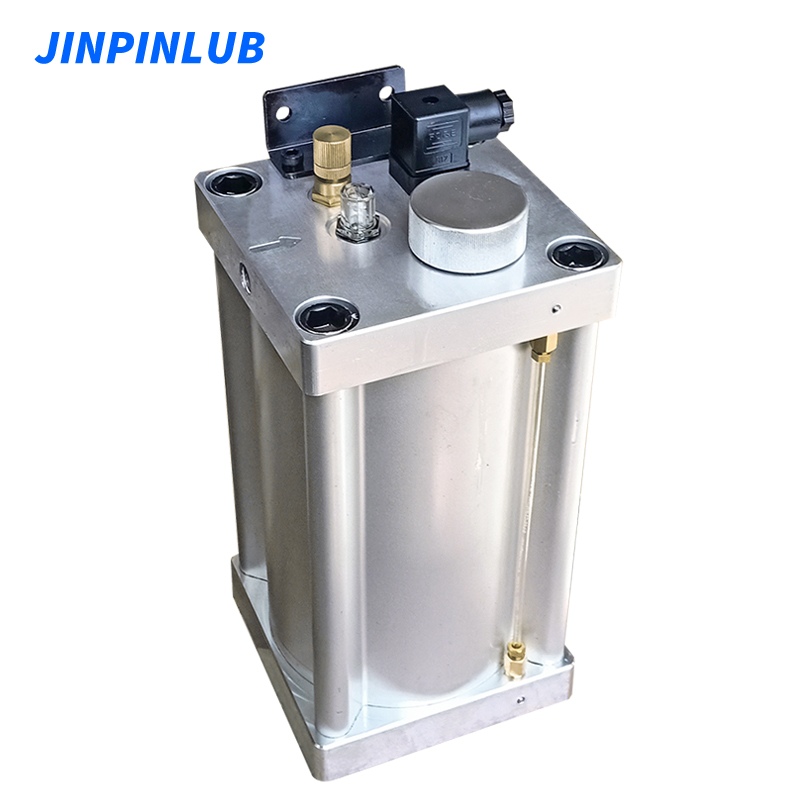

JOM Pneumatic Oil Air Mixed Adjustable Oil Mist Lubricator
JOM pneumatic oil mist lubrication pump is suitable for high-speed cutting, large-area lubrication, mechanical machining lubrication and cooling. It is equipped with a low oil level sensor and has an adjustment knob to increase or decrease the amount of oil mist.
Description
Features
1. JOM oil-mist pump is suitable for high-speed cutting lubrication, large-area lubrication, special processing lubrication and cooling.
2. The outlet of oil-mist pump can be equipped with various types of nozzles, suitable for a variety of cutting tools.
3. Oil-mist pump equipped with an oil volume adjustment knob, which can adjust the oil volume. Rotate the oil volume adjustment knob counterclockwise, the larger the air volume, the more oil mist volume. Clockwise rotation, the less oil mist.
4. The oil drop transparent window can observe whether the pump is normal, and the oil mirror can observe oil level.
5. The air pressure source of the oil-mist pump can be directly driven with the air compressor, or the solenoid valve can be used to control the ON/OFF switching action of the air source.
6. The range of air pressure source is 4~8bar, and the atomization effect is the best.
7. Please use lubricating oil or cutting water with a viscosity range of 22-68cst@40℃, but it is forbidden to add volatile oil, such as ester, ethylene glycol-based oil.
Specification
| Air inlet | PT/4 |
| Oil mist outlet | PT/4 |
| Pressure range | Max 15bar |
| Capacity | 2L, 4L, 6L |
| Working temperature | 5℃~60℃ |
| Conveying head | 80m |
| Grease filling | 15-20kg barreled |
| Weight | 5~10kg |
Precautions
1. After the oil mist lubrication pump has been used for a long time, all pipelines, hoses and connections should be checked regularly to confirm whether there are leaks or damage visible from the outside. If there are any, they should be repaired immediately.
2. Please keep this operation manual properly and place it in an easily accessible place.
3. It is recommended to check the oil mist lubrication pump daily to ensure safe and good operation. A more comprehensive inspection is required every six months to check whether the equipment is worn or aged.
4. Before maintaining or repairing the oil mist lubrication pump, ensure that the drive equipment will not start accidentally, and stop and disconnect the power supply before handling, otherwise personal injury may occur.
5. The purpose of regular maintenance is to ensure that the equipment operates normally and maximizes its effectiveness. Therefore, good maintenance quality can maintain the normal operation of the equipment.
