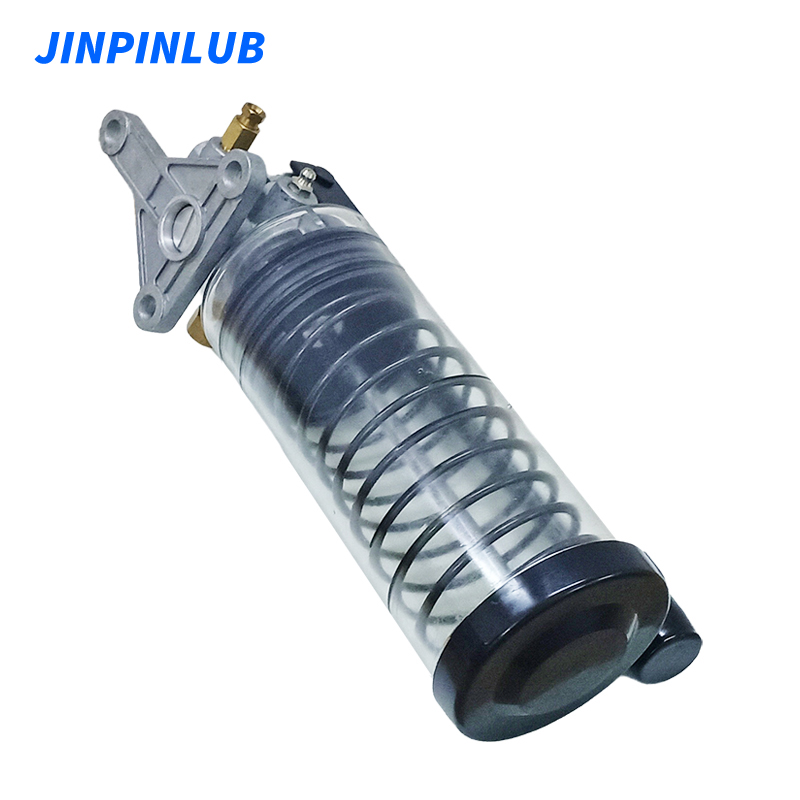

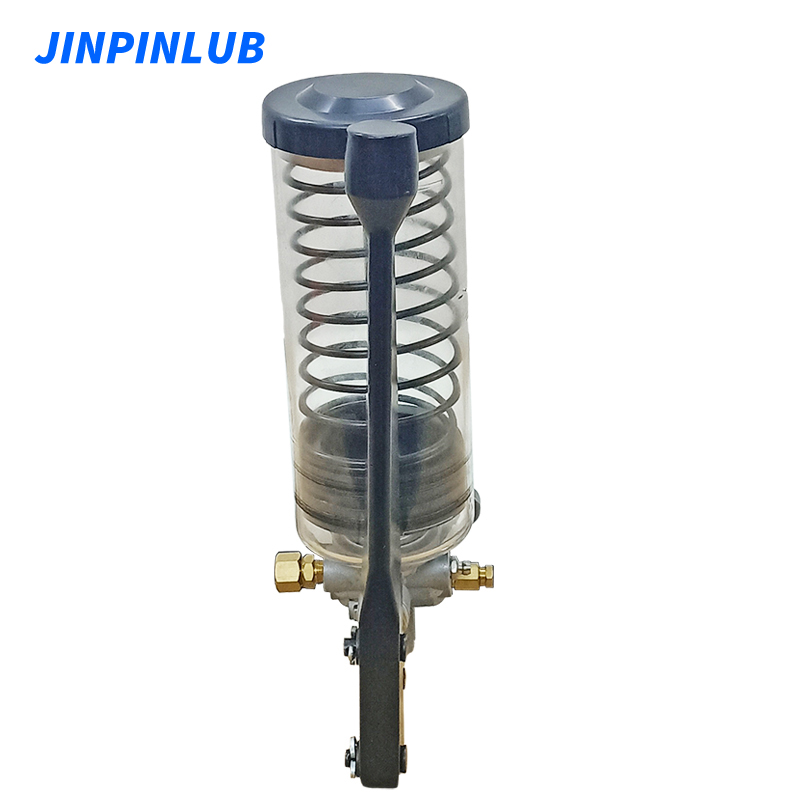

JGHP Progressive High Pressure Manual Grease Lubrication Pump
JGHP progressive manual grease pump adopts plunger progressive structure and is used in conjunction with damping grease distributor. Through the reciprocating operation of the handle, the lubricating grease is accurately delivered to each lubrication point.
Description
Features
1. Pull the handle to deliver lubricant, easy to operate.
2. With good adhesion of the pressure oil block, grease will not remain.
3. Outlet can be set on the left or right side of the handle according to the demand, or it can be double-outlet.
4. JGHP with strong spring, suitable for NLGI 1~2# grease.
5. The grease must be injected from the grease nipple to avoid air and foreign matter.
Specification
| Operating temperature | (-20~+55°C) |
| Number of outlets | 1, 2 |
| Reservoir capacity | 600mL |
| Function principle | Manually operated pump |
| Lubricant | NLGI 1~2# grease |
| Discharge | 2mL/cycle |
| Max. operating pressure | 10MPa |
| Connection thread | Outlet Φ4, Φ6, Φ8, PT1/8 |
| Certification | CE |
| Mounting position | Vertical or horizontal |
Applications
Engineering machinery: such as excavators, loaders, etc., which require frequent lubrication.
Textile machinery: ensure that the equipment is fully lubricated when running at high speed.
Printing machinery: accurate lubrication helps improve printing quality and equipment life.
Machine tool equipment: such as CNC machine tools, machining centers, etc., to ensure processing accuracy and equipment stability.
Agricultural machinery: such as tractors, harvesters, etc., adapt to various complex working conditions.
Mining equipment: work in harsh environments to ensure reliable operation of equipment.
