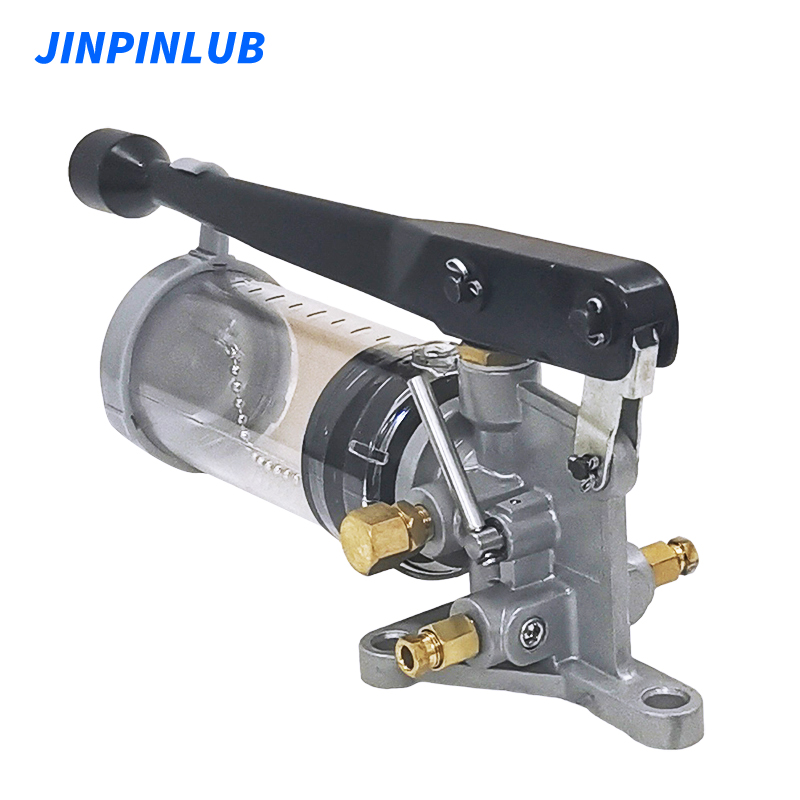

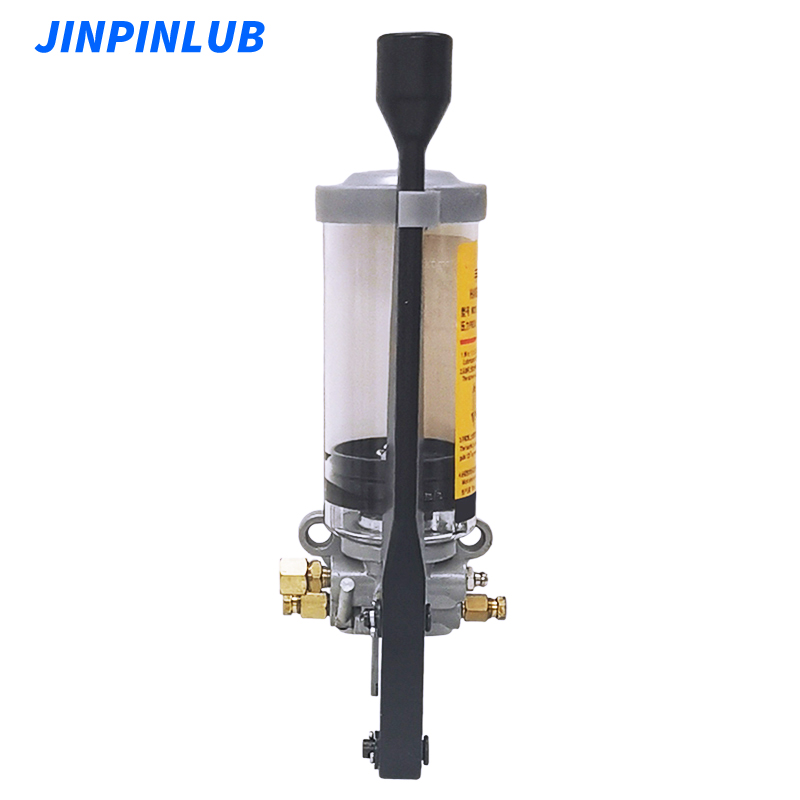

JGH3 Pressure Relief Manually Operate Grease Lubrication Pump
JGH3 manual lubrication pump is a device used for lubrication of mechanical equipment, with manual operation and pressure relief functions. It is usually used in situations where regular lubrication is required but is not suitable for automatic lubrication systems.
Description
Features
1. Pull the handle to deliver oil for lubrication, easy to operate.
2. The oil pressing block has good tightness, and butter will not remain in the oil cup.
3. The oil outlet can be set on the left or right side of the handle as required, and oil can also be discharged from both sides.
4. EGH3 is a pressure relief hand pump. After the pressure reaches the rated value, be sure to return the joystick to the locked position to release the system pressure.
5. Suitable for mechanical equipment that needs lubrication at any time, such as punching machines, woodworking machines, etc.
Specification
| Operating temperature | (-20~+55°C) |
| Number of outlets | 1, 2 |
| Reservoir capacity | 300mL, 800mL |
| Function principle | Manually operated pump |
| Lubricant | NLGI 000~0# grease |
| Discharge | 2mL/cycle |
| Max. operating pressure | 10MPa |
| Connection thread | Outlet Φ4, Φ6, Φ8, PT1/8 |
| Certification | CE |
| Mounting position | Vertical or horizontal |
Applications
1. Industrial machinery: this may comprise entities such as lathes, milling machines, and other heavy mechanical equipment that require periodic lubrication.
2. Agricultural machinery: tractors, seed drills, other farming machinery that run normally under tough conditions.
3. Construction machinery: such as excavators, bulldozers, etc., to ensure that these equipment are fully lubricated when working under high loads.
4. Vehicle maintenance: This involves lubricating bearings and other moving parts of large vehicles, including trucks and buses.
