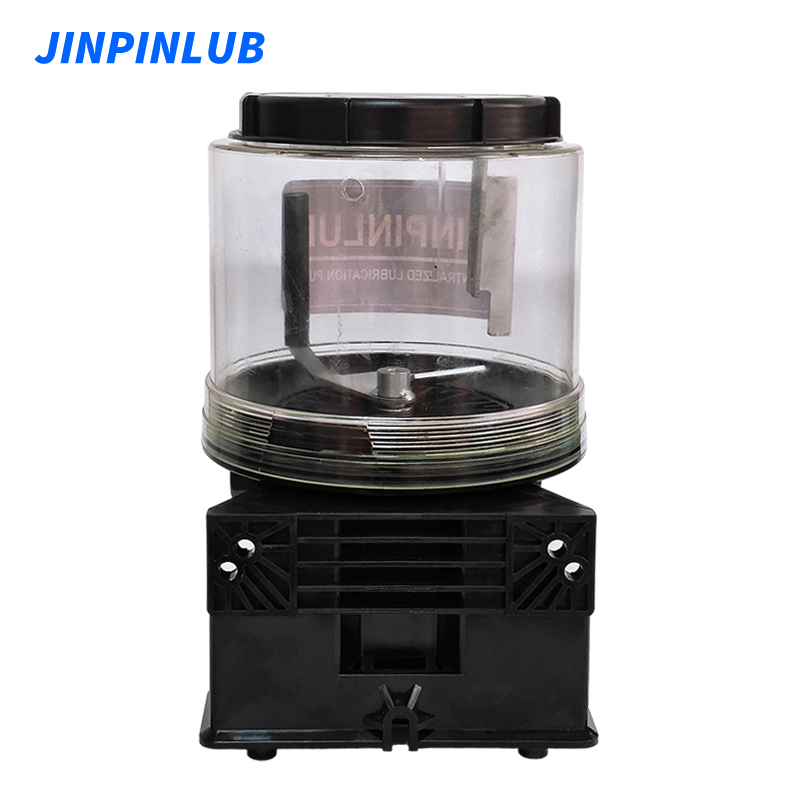

J203 Grease Pump Electric Centralized Lubrication Pump System
J203 lubrication pump is a versatile, compact, relatively inexpensive lubrication system that finds applications in a huge variety of industrial and mobile equipment. It’s designed to provide efficient and reliable lubrication solutions to ensure the normal running and prolonged service life of equipment.
Description
Features
1. Compact construction: The lubricating pump J203 is designed very compactly, which makes it really compatible for installation with little space. All in all, it consists of a housing with an integrated motor, a container with a mixing paddle, a pump element, grease nipple and electrical connection parts.
2. This pump is of high efficiency: Depending on the line length, it serves up to 150 lubrication points. It can drive up to three pump units and is able to be fitted with a low oil level controller (with or without a control board) to ensure continuous operation of the lubrication system.
3. Multi-operating setting adjustments: Based on application requirements, the user may adjust multiple operating settings involved with the control printed circuit board of the J203 lubrication pump.
4. Wide application scope: Supply either in DC or AC power and feature different types of oil tanks, with pump elements to suit different output requirements.
5. Durability: With highly effective materials, J203 works under high extremes of temperature. Thus, P203 has an operating temperature range of –40 to +70 ºC (DC) and –25 to + 70 ºC (AC).
Specification
| Operating temperature | (-40°C to +70°C) |
| Number of outlets | 1, 2 or 3 |
| Reservoir capacity | 2L, 4L, 8L |
| Refilling | Hydraulic lubrication fitting or from top |
| Lubricant | Greases of at least NLGI grade 2, Oils up to 40mm²/s (cSt) at 40° C |
| Class of protection | IP6K 9K |
| Piston diameter, K5 | 5 mm, approx. 2 cm³/min |
| Piston diameter, (standard) K6 | 6 mm, approx. 2.8cm³/min |
| Piston diameter, K7 | 7 mm, approx. 4 cm³/min |
| Max. operating pressure | 350 bar |
| Connection thread | G 1/4 |
| Operating voltage | 12VDC, 24VDC, 110-240 VAC |
Applications
1. Mobile equipment: J203 pumps are very predominantly installed on a wide range of mobile equipment, from wheel loaders and excavators down to small and medium-sized equipment. This type of equipment has often been subject to extremely poor working conditions; therefore, a reliable lubrication system is extremely necessary for normal operation.
2. General industry: J203 pump in general industrial applications lubricates all mechanical equipment, mainly combines, balers, and forage harvesters.
3. Special applications: This pump is appropriate in some special applications, such as within the food and beverage industries. Therefore, their pump components are nickel-plated steel, while the lubricants used in these pumps are in accordance with the criteria of food-grade lubrication.
